Salt fingers
Purpose:
To demonstrate the growth and evolution of salt fingers
What Happens:
A tank of water is stratified with a surface layer of
warmer water containing a few crystals of flourescein dye. The tank
is viewed from the side, and illuminated with a vertical slit of
projector light coming through the right side of the tank. The video
is shot with a factor of ten timelapse. Green fingers of flourescein
colored water form and fall through the clear water.
Physics of the Phenomenon:
This is an example of a double-diffusive
instability (Turner, 1973) called salt fingers. In this case, the
salt is a flourescein salt, which makes the water "heavy on top" in
the salt concentration, but the stratification is kept gravitationally
stable by the "warm on top" temperature gradient. The key to the
instability is the fact that heat diffuses much more rapidly than salt

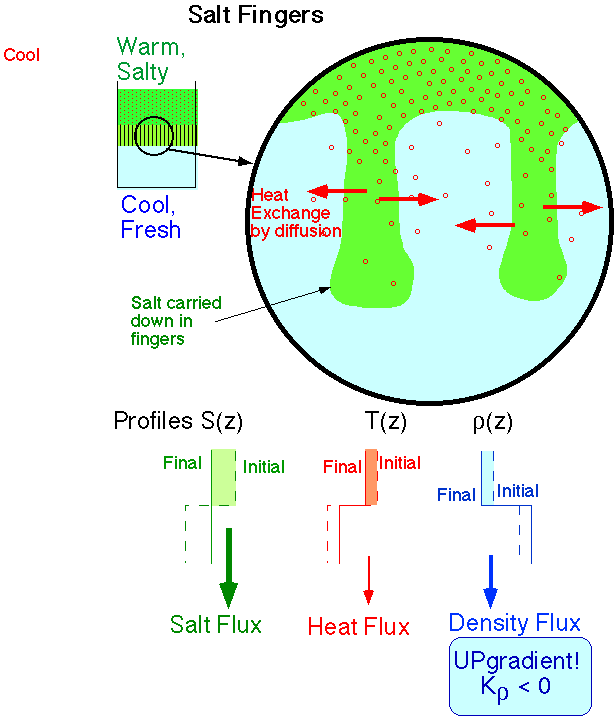

(hence the term double-diffusion). A downward moving finger of warm
saline water (see diagram) cools off via molecular diffusion of heat,
and therefore becomes more dense. This provides the downward buoyancy
force that drives the finger. Similarly, an upward-moving finger
gains heat from the surrounding fingers, becomes lighter, and
rises.
The net effect is a vertical exchange of water containing the salt,
and hence a downwards salt flux. The heat flux is also downward, but
is much smaller since most of the heat diffuses out sideways to
adjacent fingers. The combined heat and salt fluxes yield a "density"
flux that is downwards. Hence the top layer of water actually becomes
less dense over time, and the lower layer becomes more dense. In
terms of eddy diffusivities, the effective salt and heat diffusivities
are positive (i.e., downgradient), but the density diffusivity is
negative -- an upgradient flux!
References: Turner, J.S., Buoyancy Effects in Fluids, Cambridge
University Press, Cambridge, U.K.368 pp.,1973.
Credits:
Movie and text - Barry Ruddick
Digitization of movie - Dave Hebert
